ElectraCOOL™ Thermoelectric Cooling Module
Specifications with Thot = 27°С
40 x 40 x 4.6
With a cooling capacity of 32 watts, TM-127-1.4-4.0 is our least powerful single-stage thermoelectric module with a 40 x 40 mm footprint. This module is best used in applications where maximum coverage is desired but loads (or ΔT's) are not substantial. This is often an excellent choice if temperature stabilization near ambient is desired or if space for a hot-side heat-sink is limited.
TM 127-1.4-4.0 is commonly used in multi-module applications. Connecting the module in strings allows for coverage of a large surface area. From a design perspective, longer strings are usually comprised of modules like TM 127-1.4-4.0, with low to moderate Qmax ratings. This is partly to limit the amount of heat ejected, but primarily because of the relative scarcity, and prices, for power supplies with high current ratings.
May be used for cooling, heating and temperature stabilization in a wide range of applications including refrigeration, consumer goods, medical, analytical, laboratory & scientific instruments, telecommunications, electro-optics, industrial and military. A version for thermal cycling is available.
Operating temperature range: -50 °C ~ +200 °C
Comprehensive Specifications (Hot-Side Temperature 27 °C)
Imax = 3.9 Amps (Imax is the maximum current at ΔTmax)
Vmax = 15.5 Volts (Vmax is maximum voltage at ΔTmax)
Qcmax = 32 Watts (Qcmax is maximum cooling capacity at Imax, Vmax and ΔT = 0 °C)
ΔTmax = 70 °C (ΔTmax is maximum temperature difference at Imax, Vmax and Qc = 0W)
Internal resistance = 3.15 Ω ± 10% as measured by AC 4-terminal method at 25 °C
Operating temperature range: -50 °C ~ +200 °C (Solder melting point: +235 °C)
Thickness tolerance: ± 0.025mm. Flatness and parallel variance: ± 0.05mm
(Lapping available to ± 0.01mm for multi-module apps.)
Standard lead wires: 20 AWG, Tin (Sn) plated at module interface, with a maximum temperature of +105 °C
(Other wiring options available.)
Maximum recommended compression: 1MPa
Ceramics: Alumina (AL2O3) - Available with metalized and tinned surfaces
Available in strings of 2-12 modules
A version for thermal cycling is available

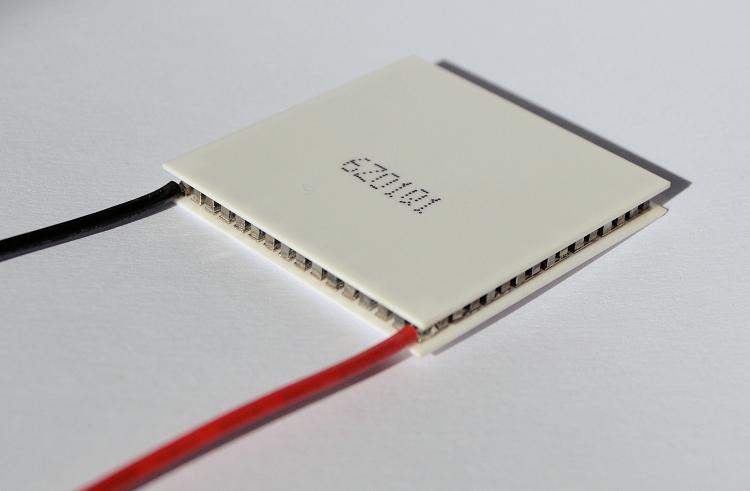

The lot number is printed on the center of the cold-side
Options & Designations (Suffix):
(for example: TM 127-1.4-8.5 "EL")
- Epoxy edge sealing = "E"
- RTV edge sealing = "RTV"
- Lapping to ± 0.01mm = "L"

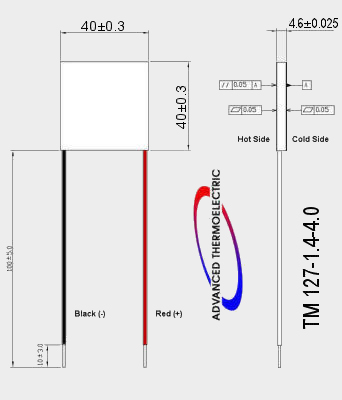

click drawing for enlargement
Dimensions in mm
- Thermoelectric Module Overview
- Module Specifications
- Thermoelectric Fundamentals
- How A TEC Works
- Installing TE Modules
- TE Module Reliability
- Epoxy Edge Sealing
Please contact us for a quotation at email@example.com or (603) 888-2467
Performance Curves (click image for enlargement)
Thermoelectric module performance curves are graphical representations showing the relationships between power applied and net cooling for a specific TE module.
Performance curves are valuable tools for quickly determining if a TE module is a suitable COOLER for an application; learning what power is required for an appropriate module to reach the desired temperature and heat pumping capacity; and to provide the basic information necessary for proper assembly design.

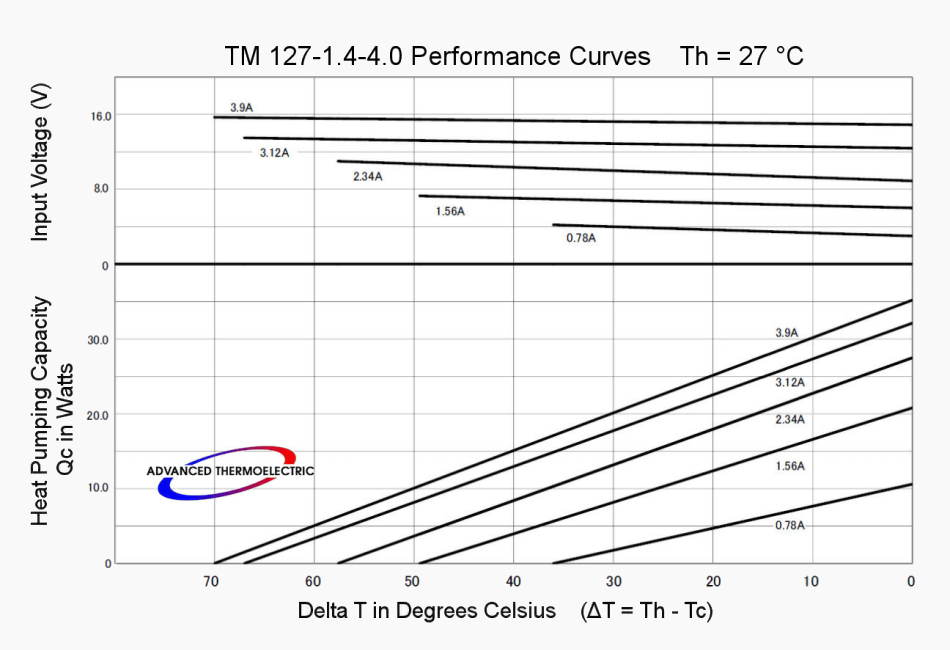

Curves with Th = 27 °C indicate what to expect operating a well designed, fan cooled, assembly in ambient temperatures around 20 °C (70 °F) with an operational "hot-side" temperature or Th about 7 °C above ambient.

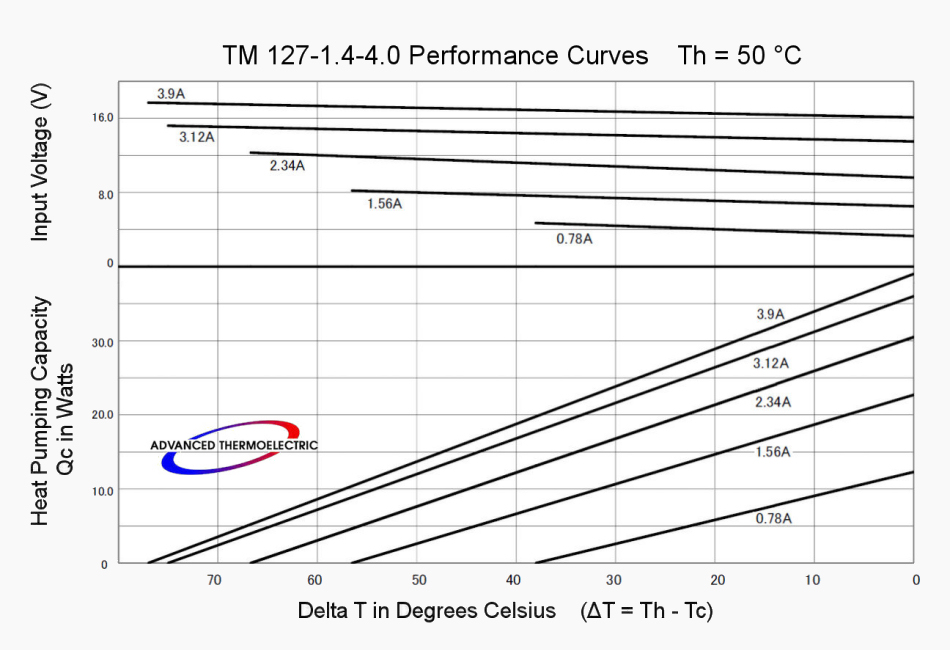

Curves with Th = 50 °C indicate performance expectations from assemblies with limited heat-sinking space and hot-side temperatures about 30 °C above ambient. This curve is also helpful for outdoor, box-in-box, and other applications with (relative) ambient temperatures in the 40-50 °C range.
