Conventional DIN Rail Power Supplies

The standard series of industrial DIN Rail supplies have been a staple for many organizations. Generally, the entire series have been updated to comply with contemporary standards and requirements and to meet additional regulatory agency requirements. Newer models are added to provide a greater selection and options for users. Durability continues to improves as well, and now each supply comes with a three year warrantee.

All supplies are UL 508 (industrial control equipment) approved. Check the Data-Sheet for additional information, approvals and certificates.

DIN RP Series - Universal AC Input

  • Universal AC Input (88~264VAC) economical DIN Rail Power Supplies
  • Typically used in 110 or 220VAC input applications

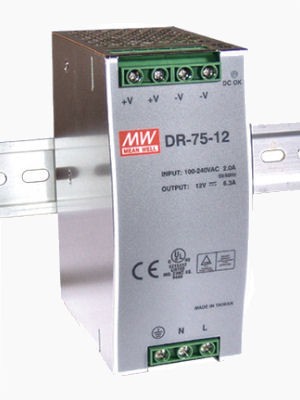

DIN Rail 75 Watt Photo

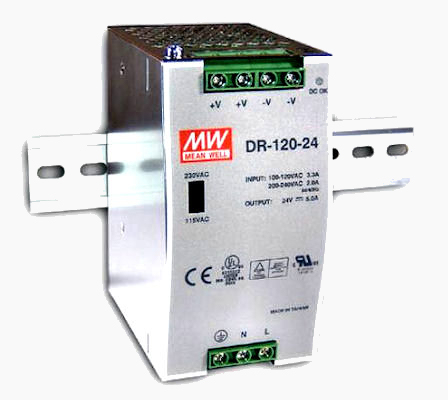

DIN Rail 120 Watt Photo

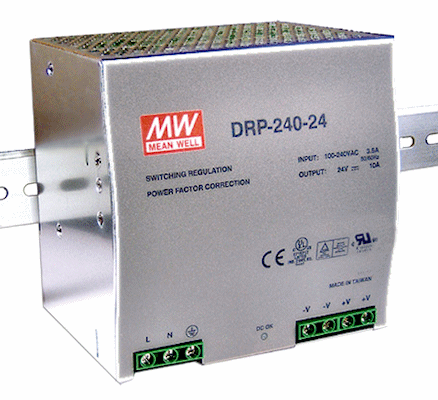

DIN Rail 240 Watt Photo

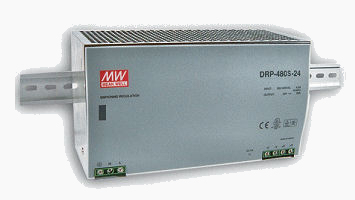

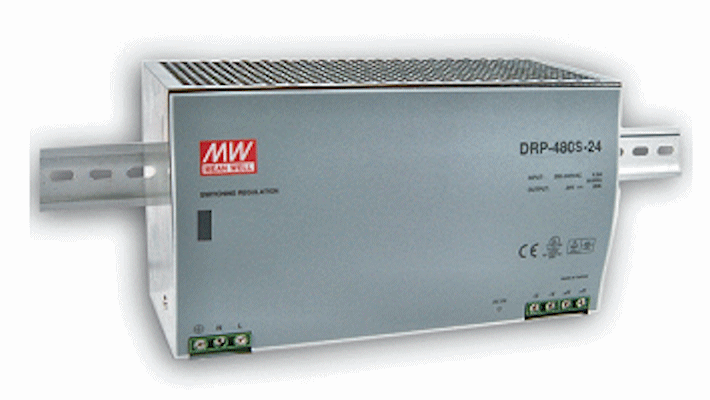

DIN Rail SDR480 Photo

DIN-HDR Series - High Input Range

  • High Input Range (three-phase 340~550VAC), Economical DIN Rail Power Supplies
  • A low wattage power supply typically used in 3-Phase input applications
Compact - Wide Input DIN Rail 480 Watt Photo

DIN-TDR Series - Three Phase Input

  • Three-Phase 340~550VAC wide input range economical DIN Rail Power Supplies
  • Two phase operation possible with de-rating

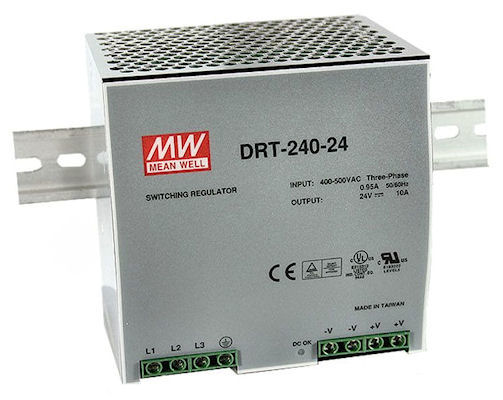

240W 3-Phase Input DIN Rail Power Supply Photo

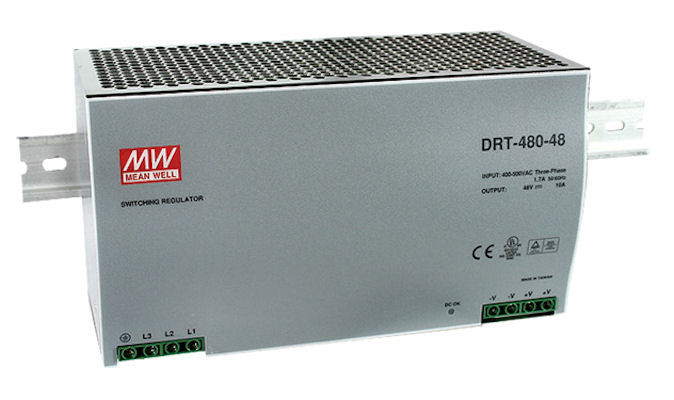

480W 3-Phase Input DIN Rail Power Supply Photo

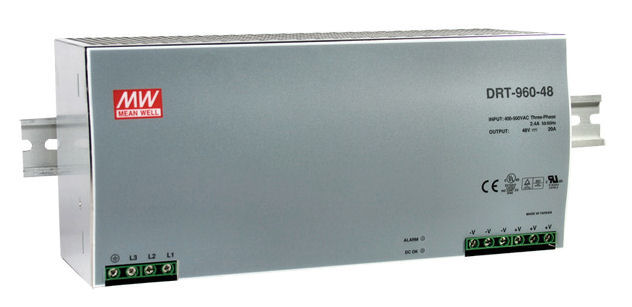

960W 3-Phase Input DIN Rail Power Supply Photo

Economical, Reliable and Quiet

  • Economical
  • UL508 (industrial control equipment) compliant
  • Most with EN61000-6-2 (EN50082-2) industrial immunity
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • LED indication for power on
  • Output voltage may be increased by 15% by rheostat through top mesh cover
  • Quite efficient with low power dissipation
  • Quiet - Cooling by natural (free air) convection
  • Installed on DIN rail TS35 / 7.5 or 15
  • 100% full load burn-in test
  • Operational Temperature range: -20 ~ +60ºC (-4ºF~140ºF)
  • 3 year warranty
Comply with ROHS (Restriction of Hazardous Substances) and 2006/122/EC - PFOS (PerFluoroOctane Sulfonates)
