ElectraCOOL™ Thermoelectric Module Specifications

Thermoelectric Module Photo


ElectraCOOL™ Thermoelectric Module Specifications

Part Numbers Explained Using TM 127-1.4-8.5

TM = Thermoelectric Module, 127 = Number of Couples, 1.4 = Footprint of TE Dice (1.4 mm), 8.5 = Maximum Current (Imax) at Maximum Cooling (ΔTmax)



Part Number

Click on Part Number for Complete Specifications,
Performance Curves and a Drawing

Thot= 27 ℃ / Th=50 ℃ Dimensions
(mm)

L x W x H
Imax

Amps

Umax

Voltage

Qmax

Watts

∆Tmax

K (℃)

TM 31-1.0-2.0>Click on Part Number for Complete Specifications

2.0

3.8

4.4 / 5.0

70 / 77

15 x 15 x 4.7

TM 31-1.0-3.0

3.0

3.8

7.3 / 8.0

70 / 77

15 x 15 x 3.8

TM 71-1.0-3.0

3.0

8.8

16.0 / 18.0

70 / 77

20 x 20 x 3.8

TM 127-1.0-3.0

3.0

16

29.8 / 32.5

70 / 77

30 x 30 x 3.85

TM 31-1.0-4.0

3.9

3.8

8.6 / 9.5

70 / 77

15 x 15 x 3.6

TM 71-1.0-4.0

4.0

8.8

18.7 / 20.9

70 / 77

20 x 20 x 3.6

TM 127-1.0-4.0

4.0

16

35.2 / 39.0

70 / 77

30 x 30 x 3.65

TM 127-1.4-4.0

4.0

16

32.0 / 35.2

70 / 77

40 x 40 x 4.6

TM 31-1.0-6.0

6.0

3.8

13.0 / 14.3

70 / 77

15 x 15 x 3.1

TM 71-1.0-6.0

6.0

8.8

29.7 / 32.7

70 / 77

20 x 20 x 3.1

TM 71-1.4-6.0

6.0

8.8

31.1 / 34.2

70 / 77

30 x 30 x 3.95

TM 127-1.4-6.0

6.0

16

55.6 / 61.0

70 / 77

40 x 40 x 3.95

TM 31-1.4-8.5

8.5

3.8

18.8 / 20.8

70 / 77

20 x 20 x 3.4

TM 71-1.4-8.5

8.5

8.8

43.1 / 48.0

70 / 77

30 x 30 x 3.5

TM 127-1.4-8.5

8.5

16

77.1 / 85.0

70 / 77

40 x 40 x 3.45

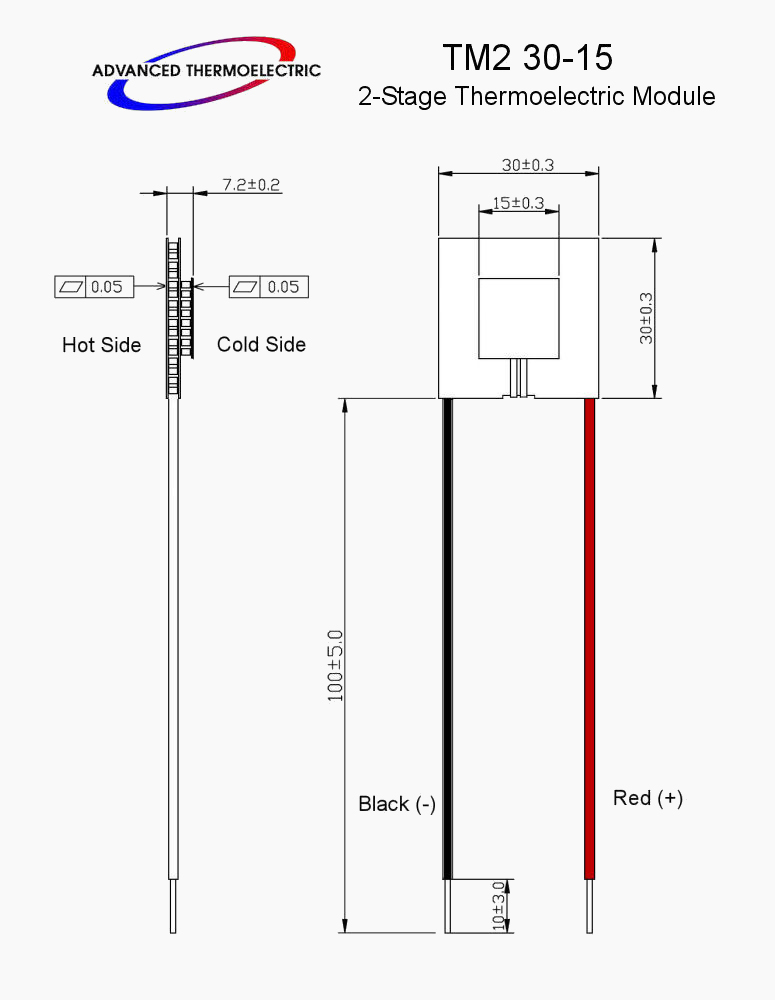

TM2 30-15-2.8
Cascading 2-Stage TEC With 15x15mm cold-side

2.8

15.7

8.7 / 9.6

95 / 105

2nd stage (cold-side) = 15 x 15
1st Stage (base) = 30 x 30
total height 7.2
Click for Drawing

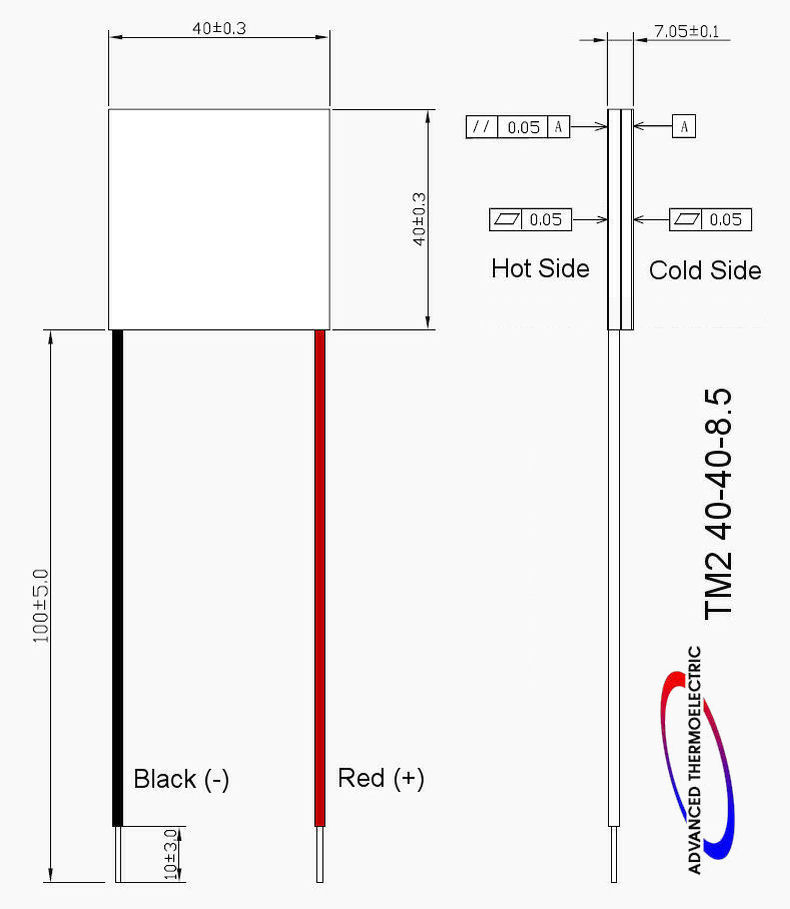

TM2 40-40-85
2-Stage TEC With Both Stages 40x40mm

8.5

16.1

51.6 / 58

85 / 95

2nd stage 40 x 40
1st stage = 40 x 40
total height 7.0
Click for Drawing

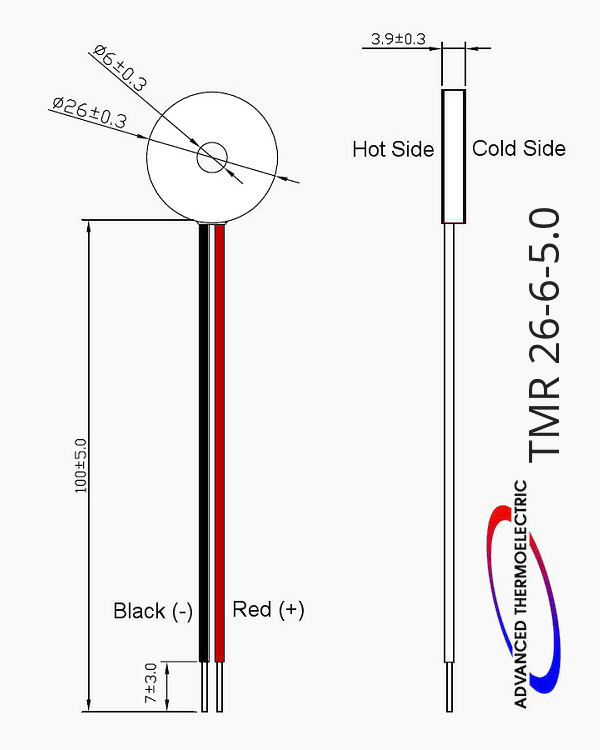

TMR 26-6-5.0
26mm Round with 6mm Center Hole

5.0

6.1

17.8 / 19.6

68 / 75

⌀OD 26.0 - ⌀ID 6.0 x 3.9
Click for Drawing



ElectraCOOL™ TE Module Options:

Epoxy edge sealing = "E"
RTV edge sealing = "RTV"
Lapping to a close-height tolerance of ± 0.01 mm = "L"
Thermal Cycling Version = “C”
(for example: TM 127-1.4-8.5 "EL")


Typical Thermoelectric Module tolerances in mm Illustration

Imax is maximum current at ΔTmax

Umax (AKA Vmax) is maximum voltage at ΔT max

Qmax is maximum cooling capacity at Imax, Vmax and ΔT = 0°C

ΔTmax is maximum temperature difference at Imax, Vmax and Q = 0W

  Typical Module Properties

Maximum operating temperature: +200°C (2-Stage and Round Modules +100°C)

Melting point of internal solder (Sn/Sb 5%): +235°C (2-Stage and Round Modules +138°C)

Lead wires - Stranded tinned copper PVC insulated - see data sheets for gauge (Other wire available)

Height tolerance: ± 0.025 mm (Lapping to a close-height tolerance of ± 0.01 mm available)

Flatness and Parallel variance not more than: 0.05mm

Alumina Oxide Ceramics: Al2O3

Maximum compressive load: 1MPa

ΔTmax is measured in vacuum 1.3Pa

A Thermal Cycling "C" type of each single-stage module, with a patented adhesive process is available.

"L" type modules are available in custom arranged strings from 2-12 modules long saving you prep time.
To eliminate potentially exposed connections we factory seal TECs after wiring the strings!

Metallized and/or tinned surfaces are available.



Try one Legendary ElectraCOOL™ TEC for $25 *delivered
OR, share a current P.O. for similar TE Modules from a major competitor and try a free sample on us!
*Free shipping included in USA only - (2-stage $75)
