Thermoelectric Cooling Module TM 71-1.4-6.0

TM 71-1.4-6.0 Thermoelectric Cooling Module

Specifications with Thot = 27 °С

Part Number

Imax
A

Umax
V

Qcmax
W

∆Tmax
K

Dimensions (mm)
L x W x H

TM 71-1.4-6.0

6.0

8.8

31.1

70

30 x 30 x 3.95



TM 71-1.4-6.0 is a popular multi-purpose single-stage thermoelectric module with a 30 x 30mm footprint. Typically used with 5 to 8 Volt DC power sources.

TM 71-1.4-6.0 can be used with a very wide variety of economical extruded heat-sinks without the hot-side temperature becoming unreasonably high. It’s also frequently used in strings. For example, two connected in series can be operated from a 12V source (or 15V). Four in series are operated with a 24V source, etc. A combination of parallel strings of modules in series allows coverage of a large surface area.

May be used for cooling, heating and thermal stabilization and is employed in a wide range of applications including electro-optic/photonic, fiber optic, aerospace/military, telecommunications. A version for thermal cycling is available.

Operating temperature range: -50 °C ~ +200 °C

Available with metalized and tinned surfaces.



Comprehensive Specifications (Hot-Side Temperature 27 °C)

Imax = 6.0 Amps (Imax is the maximum current at ΔTmax)

Vmax = 8.8 Volts (Vmax is maximum voltage at ΔTmax)

Qcmax = 31.1 Watts (Qcmax is maximum cooling capacity at Imax, Vmax and ΔT = 0 °C)

ΔTmax = 70 °C (ΔTmax is maximum temperature difference at Imax, Vmax and Qc = 0W)

Internal resistance = 1.25 Ω ± 10% as measured by AC 4-terminal method at 25 °C

Operating temperature range: -50 °C ~ +200 °C (Solder melting point: +235 °C)

Thickness tolerance: ± 0.025mm (Lapping to ± 0.01mm for multi-module apps available.)
Flatness and parallel variance: ± 0.05mm

RoHS Compliant

Standard lead wires: 20 AWG, Tin (Sn) plated at module interface, with a maximum temperature of +105 °C
(Other wiring options available.)

Maximum recommended compression: 1MPa

Ceramics: Alumina (AL2O3)
Metalized (and tinned) surfaces available

The lot number is printed on the center of the cold-side

Options & Designations (Suffix):
(for example: TM 71-1.4-6.0 "EL")



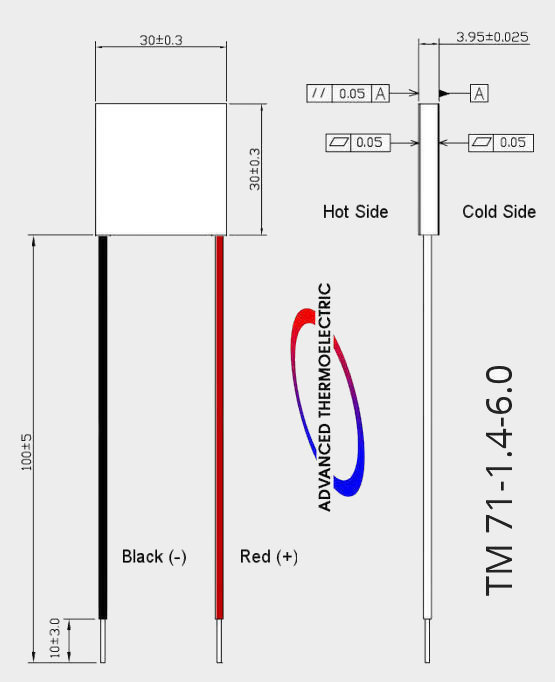

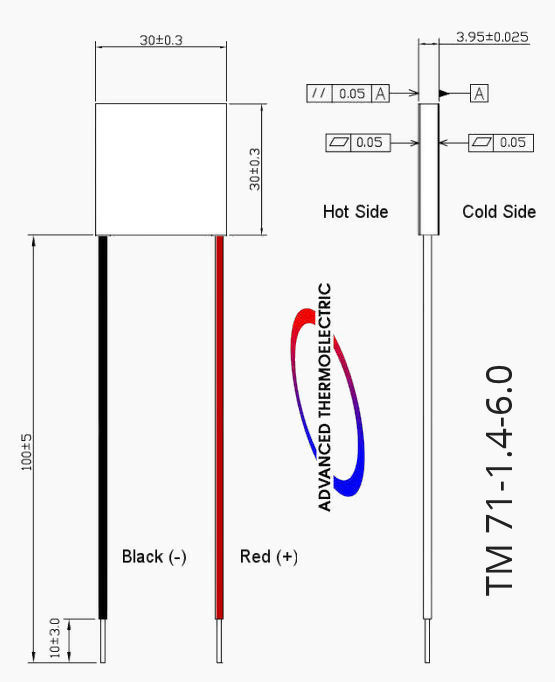

Drawing

click drawing for enlargement

TM-31-1.4-8.5 Drawing

Dimensions in mm



Useful Links



Please contact us for a quotation. sales@electracool.com or (603) 888-2467.



Performance Curves (click image for enlargement)

Thermoelectric module performance curves are graphical representations showing the relationships between power applied and net cooling for a specific TE module.

Performance curves are valuable tools for quickly determining if a TE module is a suitable COOLER for an application; learning what power is required for an appropriate module to reach the desired temperature and heat pumping capacity; and to provide the basic information necessary for proper assembly design.

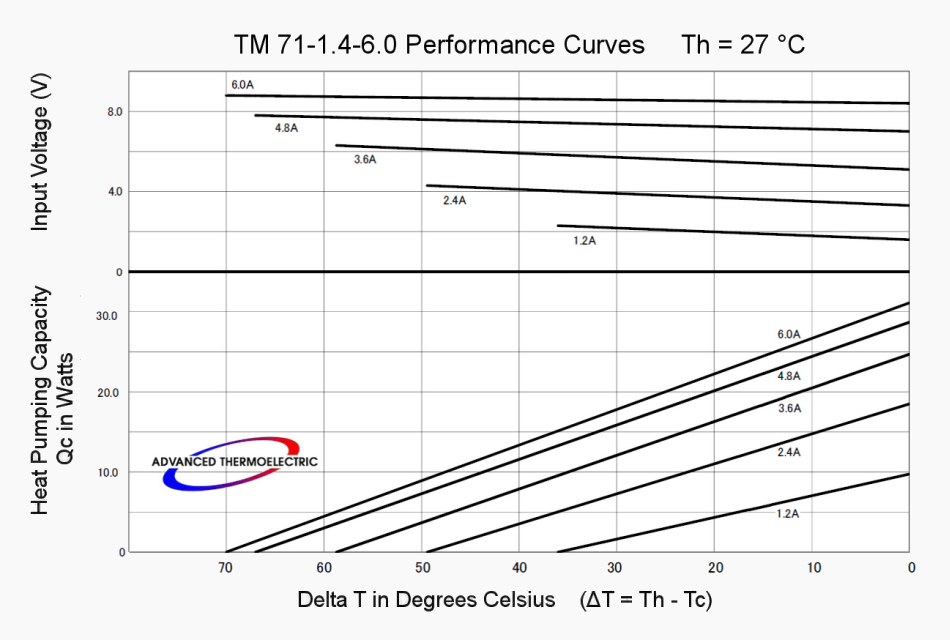

Curves with Th = 27 °C indicate what to expect operating in ambient temperatures around 20 °C (70 °F) with an operational "hot-side" temperature or Th about 7 °C above ambient.

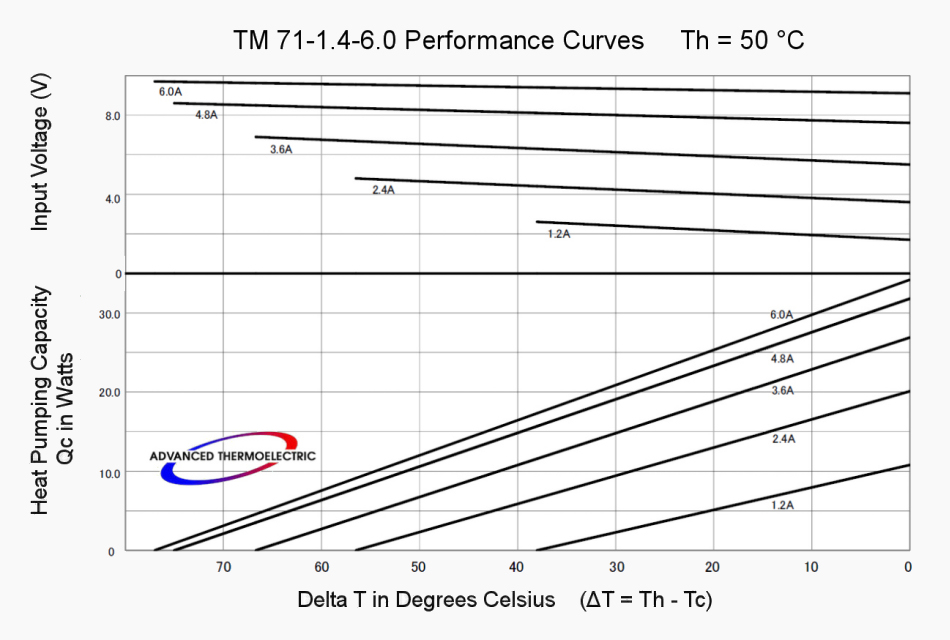

Curves with Th = 50 °C are for outdoor, box-in-box, and other applications with ambient temperatures in the 40-50 °C range.
