ElectraCOOL™ Thermoelectric Module
Specifications with Thot = 27 °С
30 x 30 x 3.85

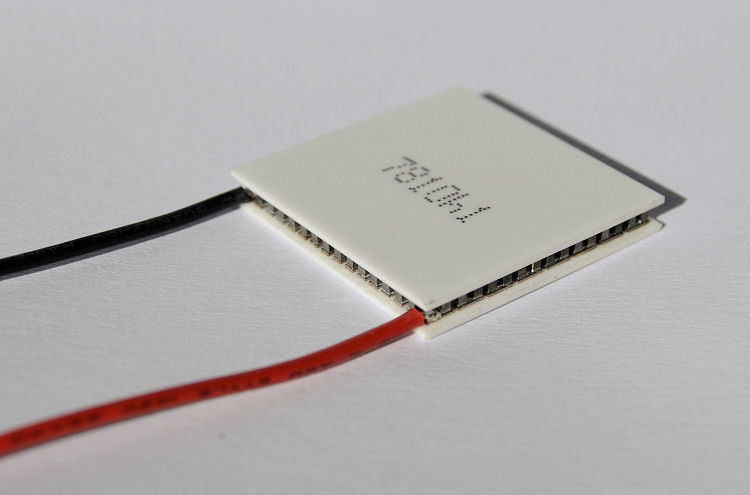

TM 127-1.0-3.0 is versatile single-stage thermoelectric module with a 30 x 30 mm foot-print. Generally, this module is powered by a 12V nominal supply.
With almost 30 watts of cooling capacity, in a module a little over an inch square, TM 127-1.0-3.0 is powerful enough to cool a wide range of components. In the 30 mm footprint, it’s the perfect balance between good cooling capacity with the ability to use a variety of economical (extruded) heat-sinks that can keep the hot-side temperature from becoming unreasonably high. A great general purpose TEC.
TM 127-1.0-3.0 may be used for cooling, heating and thermal stabilization and is employed in a wide range of applications including including medical, analytical, laboratory & scientific instruments, electro-optics, telecommunications and military. A version for thermal cycling is available.
Available with metalized (and tinned) surfaces and in strings, of your design or ours, from 2-12 modules long.
Comprehensive Specifications (Hot-Side Temperature 27 °C)
Imax = 3.0 Amps (Imax is the maximum current at ΔTmax)
Vmax = 15.7 Volts (Vmax is maximum voltage at ΔTmax)
Qcmax = 29.8 Watts (Qcmax is maximum cooling capacity at Imax, Vmax and ΔT = 0 °C)
ΔTmax = 70 °C (ΔTmax is maximum temperature difference at Imax, Vmax and Qc = 0W)
Internal resistance = 4.0 Ω ± 10% as measured by AC 4-terminal method at 25 °C
Operating temperature range: -50 °C ~ +200 °C (Solder melting point: +235 °C)
Thickness tolerance: ± 0.025mm (Lapping to ± 0.01mm for multi-module apps available.)
Flatness and parallel variance: ± 0.05mm
Standard lead wires: 22 AWG, Tin (Sn) plated at module interface, with a maximum temperature of +105 °C
(Other wiring options available.)
Maximum recommended compression: 1MPa
Ceramics: Alumina (AL2O3)
Metalized (and tinned) surfaces available
The lot number is printed on the center of the cold-side
Options & Designations (Suffix):
(for example: TM 127-1.0-3.0 "EL")
- Epoxy edge sealing = "E"
- RTV edge sealing = "RTV"
- Lapping to ± 0.01mm = "L"

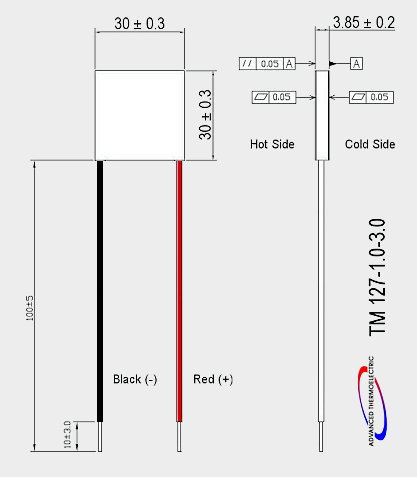

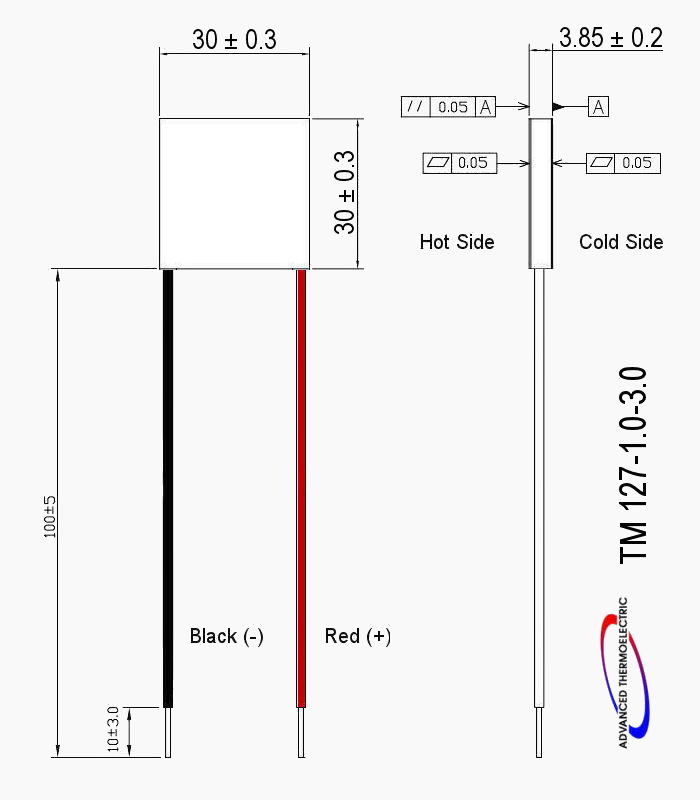

Dimensions in mm
- Thermoelectric Module Overview
- Module Specifications
- Thermoelectric Fundamentals
- How A TEC Works
- Installing TE Modules
- TE Module Reliability
- Epoxy Edge Sealing
Please contact us for a quotation. firstname.lastname@example.org or (603) 888-2467.
Performance Curves (click image for enlargement)
Thermoelectric module performance curves are graphical representations showing the relationships between power applied and net cooling for a specific TE module.
Performance curves are valuable tools for quickly determining if a TE module is a suitable COOLER for an application; learning what power is required for an appropriate module to reach the desired temperature and heat pumping capacity; and to provide the basic information necessary for proper assembly design.

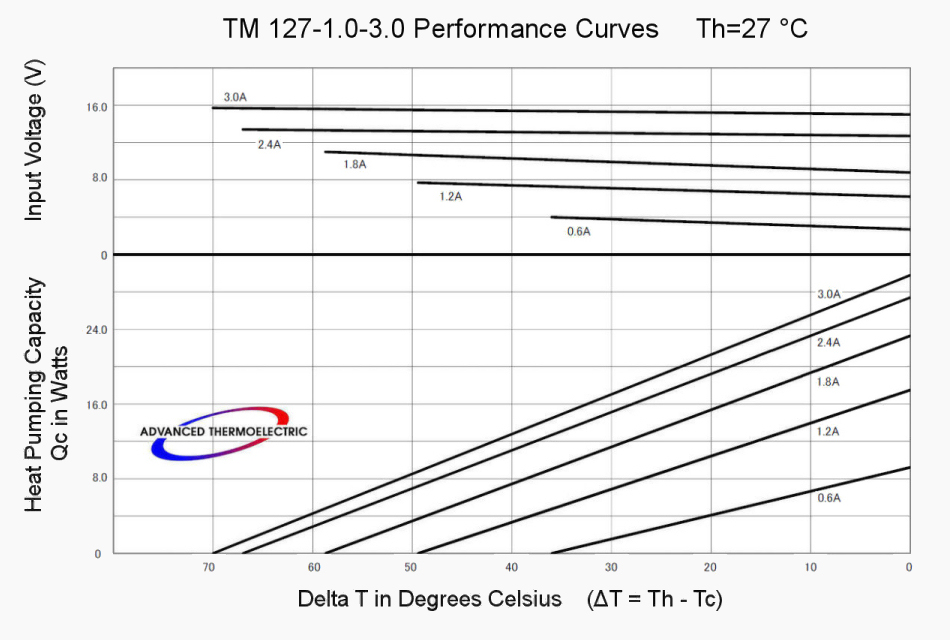

Curves with Th = 27 °C indicate what to expect operating in ambient temperatures around 20 °C (70 °F) with an operational "hot-side" temperature or Th about 7 °C above ambient.

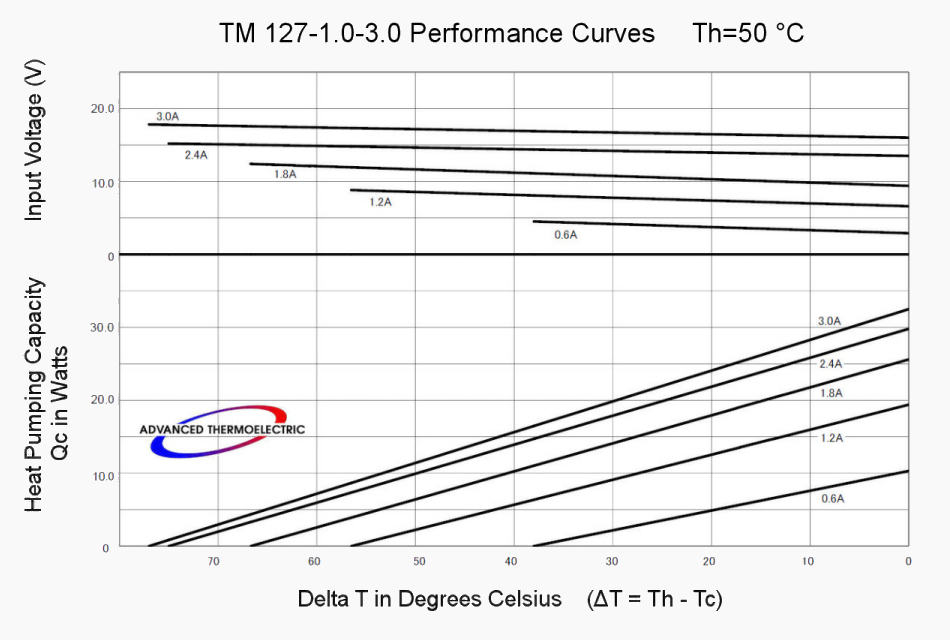

Curves with Th = 50 °C are for outdoor, box-in-box, and other applications with ambient temperatures in the 40-50 °C range.
